BB32 Light Commercial Direct Flow Reverse Osmosis Filter + Booster Pump (3,200 GPD)

Product ID:

965

Price:£839.49

Quantity:

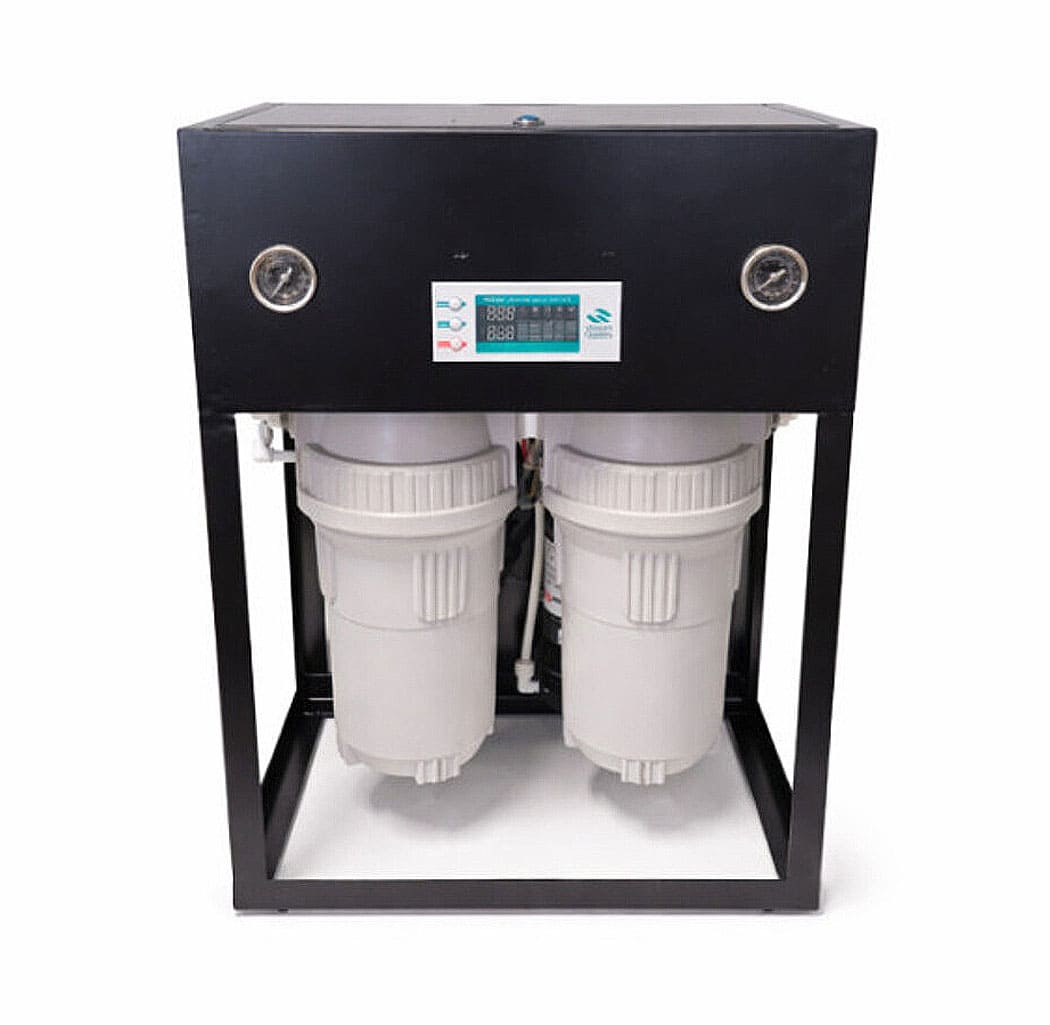

BB32 (3,200 GPD) light commercial direct flow reverse osmosis water system with built in booster pump and industrial-grade intelligent LCD controller with auto membrane flushing, TDS monitoring, filter monitoring and leak controller. Developed for continuous professional operation in demanding commercial environments.

This is a high quality light commercial reverse osmosis water filter system which removes a wide range of harmful contaminants from your water including chlorine, heavy metals, fluoride, pesticides, bacteria, silt and microplastics. Purifying the water to almost zero (TDS) total dissolved solid.

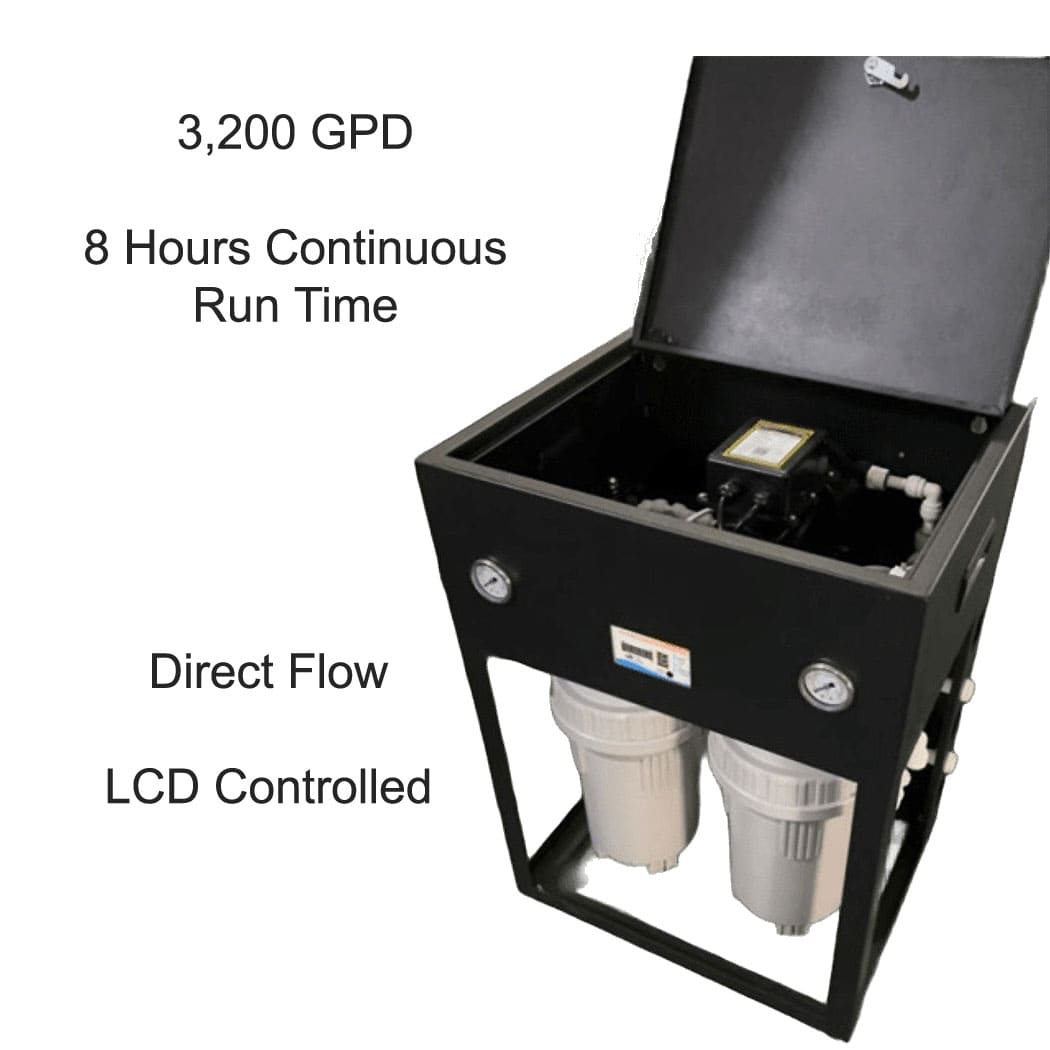

With 2 x 4.5" x 10" Pre-filters along with dual 1,600 GPD membranes with added heavy duty "continous 8 hour run time" booster pump. Fully assembled with built in auto flush computer with TDS dual display.

Built in high and low pressure switches and booster pump solenoid valve for complete control

Provides outstanding operational stability, extended continuous operating time and reliable performance under intensive daily workloads.

Suitable for light commercial use where a lot a water is required producting over 500 litre per hour.

Simple construction and compact size make it easy to be transported and moved around quickly if required. Installed and connected to a water supply in practically any place

Ideal solution for applications that need a lot of purified water quickly, if you require 0 TDS we would advise to also get a pressure vessel to hold more di resin due to this systems speed.

Filtration:

Filter 1: Polypropylene cartridge BIG BLUE 10'' - 5 micron Sediment Pre-Filter: For the removal of sediments, dirt, sand and rust.

Filter 2: Carbon block cartridge BIG BLUE 10'' - Carbon Block Pre-Filter: removes chlorine and organic chemicals that contribute to bad taste and odours.

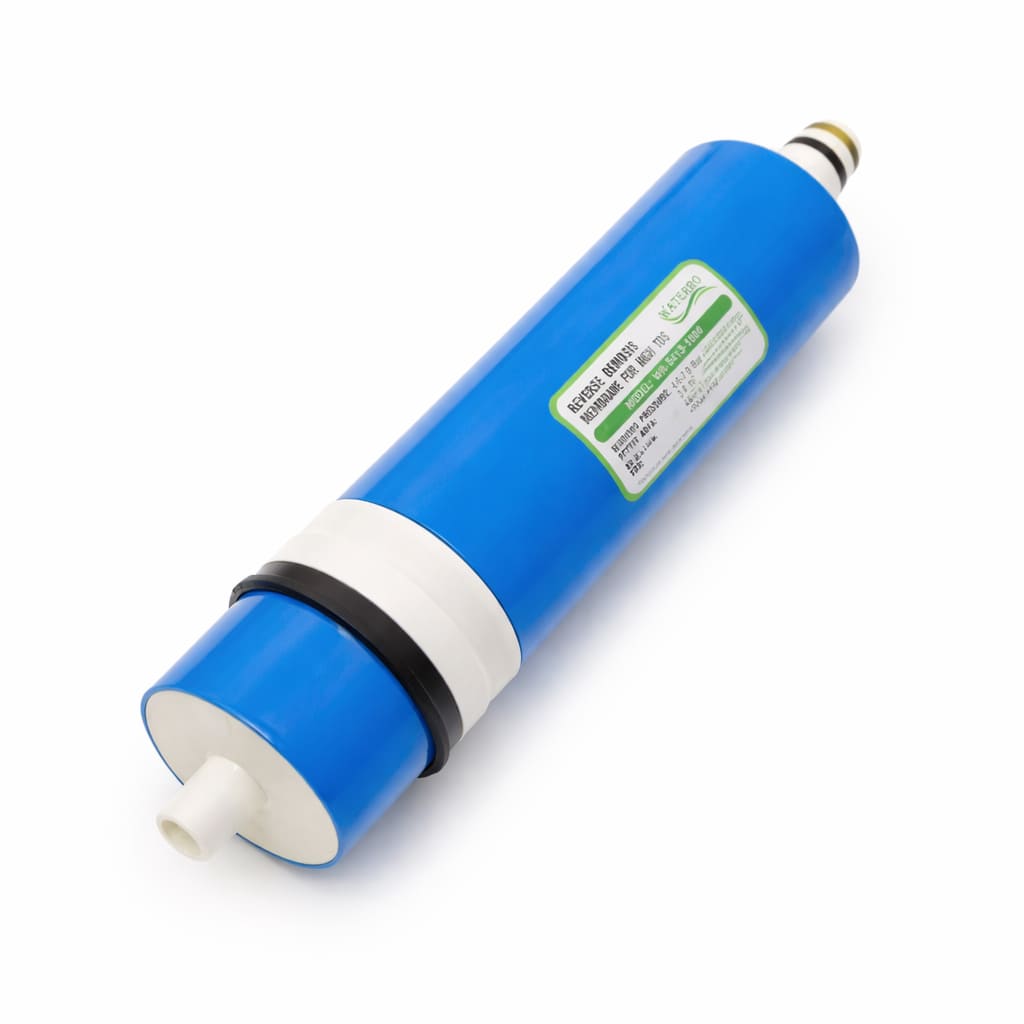

Filter 3:: Membrane 2 x 1,600GPD - Model: WR-3413: Reverse Osmosis membranes are semi-permeable removing up to 99% of contaminants present in water including viruses, bacteria, heavy metals, fluoride, hormones, silica and salts.

Pump: 220-240V 165w (8 hour continuous use)
Voltage: 240vac
Solenoids: QF Solenoid valve 24V 3/8'' TUBE - 3/8''' TUBE

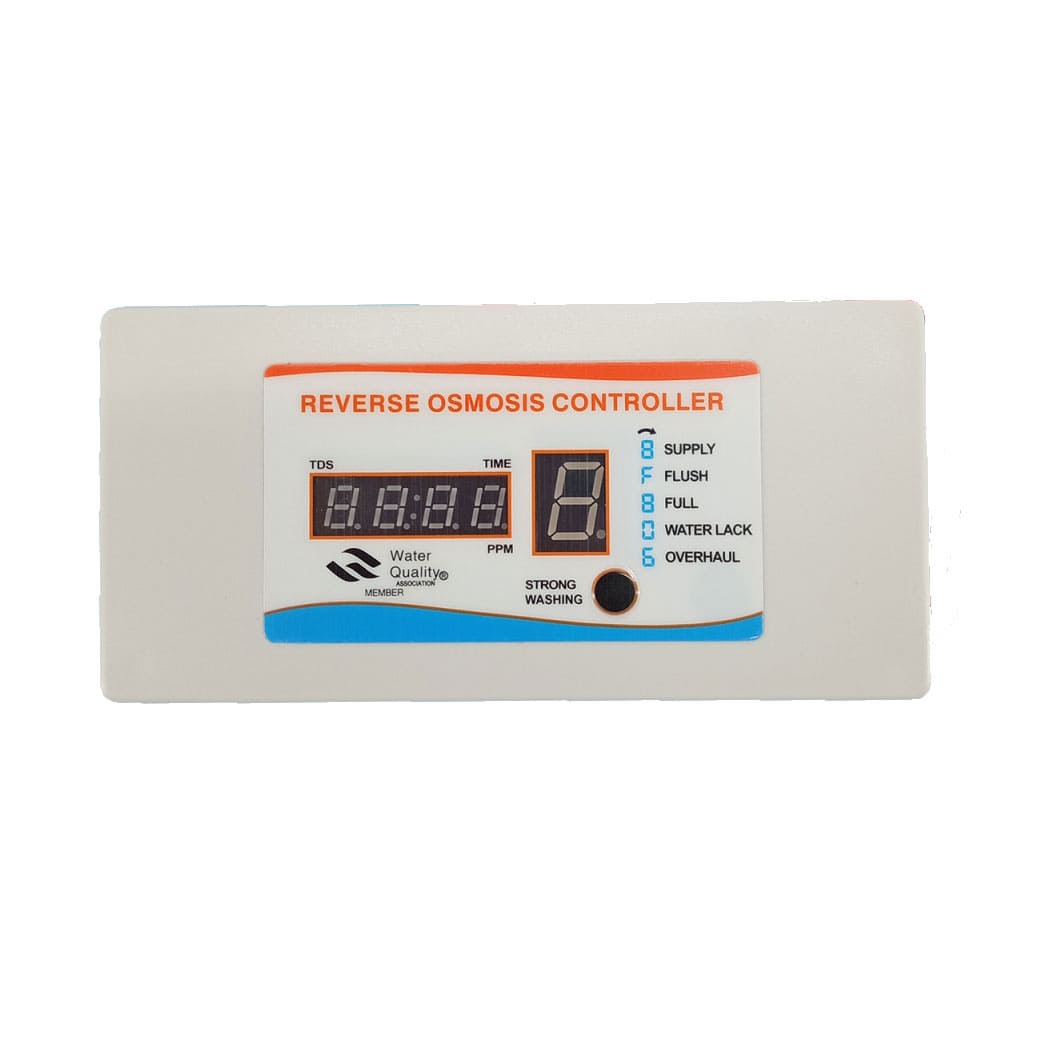

Computer Board: Premium 24V-2TDS

Dimensions: Height 640mm x Width 480mm x Depth 370mm

Our Reverse Osmosis Systems are shipped fully assembled complete with a comprehensive instruction manual for easy DIY installation with no plumbing experience required. Systems includes all the fitting accessories.

{Whats in the box!}

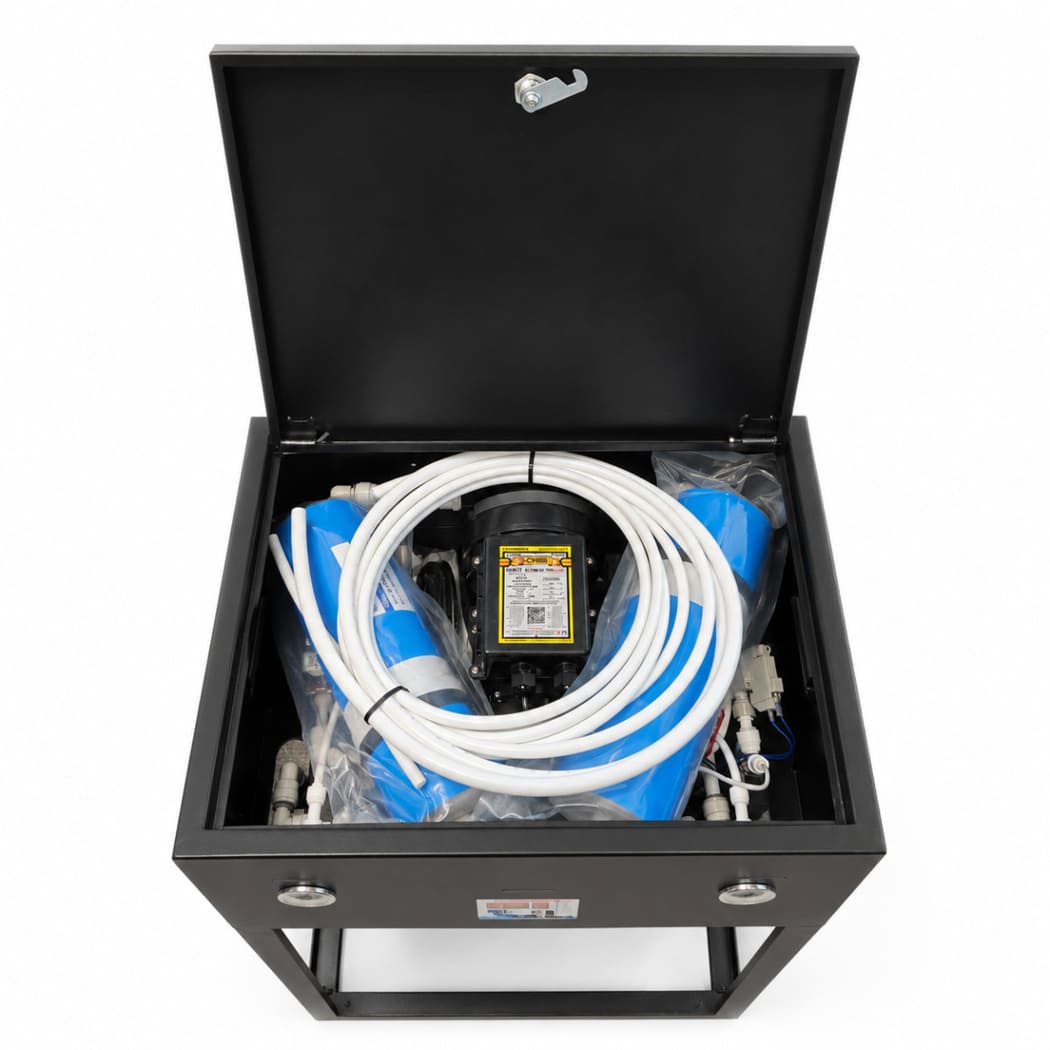

1 x BB32 housing system on frame with built in pressure gauge
1 x 10" x 4.5" - 5 Micron pre filter
1 x 10" x 4.5" Carbon block cartridge
2 x 1,600 GPD membrane
1 x Heavy duty booster pump
1 x Premium LCD controller
1 x Membrane flush kit
1 x Solenoid valve
1 x High pressure switch
1 s Low pressure switch
1 x Pressure gauge
1 x Filter housing spanners
2 x 3/8" tubing
1 x 1/2" Supply connection
1 x Instruction manual

{Specification}

Supplied water temperature: 5 - 40 ° C
Min. Water pressure: 20 psi
Max. water pressure: 80 psi
Max. the salinity of water: 2000 ppm
Raw water connections: three types included in set:
Connection for 3/8" quick connect BSP
Clean water supply hose: 1/2 ''
Drain to the sewer: 3/8 ''
Solenoids: QF Solenoid valve 220V 3/8'' Tube

Dimensions: Height 590 mm, Width 470 mm, Depth 310 mm

{Replacement Filters}

This System Replacement Filters

1,600 GPD Reverse Osmosis Membrane (3413)

£89.99

Melt Blown Sediment Filter (4.5" x 10")

£12.28

Carbon Block Filter (4.5" x 10")

£23.69

{Product Q&A}

Can this be used with an electric float switch to stop the pump cycling?
Yes, you can simply wire it into the high pressure switch
