Digital Flow Capacity & Elapse Time TDS/Conductivity Monitor

Product ID:

1008

Price:£61.98

Quantity:

Important note: This item is special-ordered upon purchase and will be added to next import - lead time approx. 3-4 weeks (or contact us for next import dates so we can add to it)

The Savant ES081L-AQ is a digital flow sensor and water quality monitor designed for residential and commercial reverse osmosis systems or water softeners etc. It automatically tracks water volume, elapsed time, and TDS (Total Dissolved Solids) or conductivity. Automatically activates when water flows, tracking usage metrics and alerting you the moment your filters need servicing.

Core Functions:

Flow Measurement: Automatically turns on when water flows through the 1/4" sensor and shuts off 10 seconds after flow stops.
Capacity Life Monitor: Tracks total water usage capacity from 100 to 99,900 litres.
Elapsed Time Monitor: Tracks time passed from 30 to 720 days to measure filter age.
TDS / Conductivity Monitor: Measures mineral content and water conductivity from 10 to 300 ppm (or µS/cm) every 30 litres.
Alerts: Triggers an end-of-filter-life warning
Alerts: Triggers when set threshold of TDS/Conductivity is exceeded
Alerts: Low battery warning

If the measured TDS/Conductivity exceeds the limit:
The buzzer will beep twice, and the digits on the LCD will blink.

If the measured flow countdown / time elapse exceeds the limit:
The buzzer will beep twice, and the digits on the LCD will blink.

TDS / Conductivity Measurement & Display:
To optimize battery life, measurement and update TDS/Conductivity value automatically every 30 litres while water flows, and display the result on the LCD screen.

Flow Monitoring: Functions as a filter capacity life monitor, displaying the remaining countdown volume (from 100 to 99,900 liters) and elapsed days rather than totalized flow.
(for example - if you filter has a 6 month lifepspan or 12,000 litre capacity you can set the days and flow countdown and be alerted whichever exceeds first)

Key Applications:

Water Purification Systems
Hydroponics & Aquariums
Industrial Boilers & Cooling Towers
Commercial Window Cleaning
Beer Brewing & Distilling
Aquaculture & Fish Farming
Wastewater Treatment & Reclamation
Chemical Dosing Systems

Model: ES081L-AQ
Cable length - 1.5m

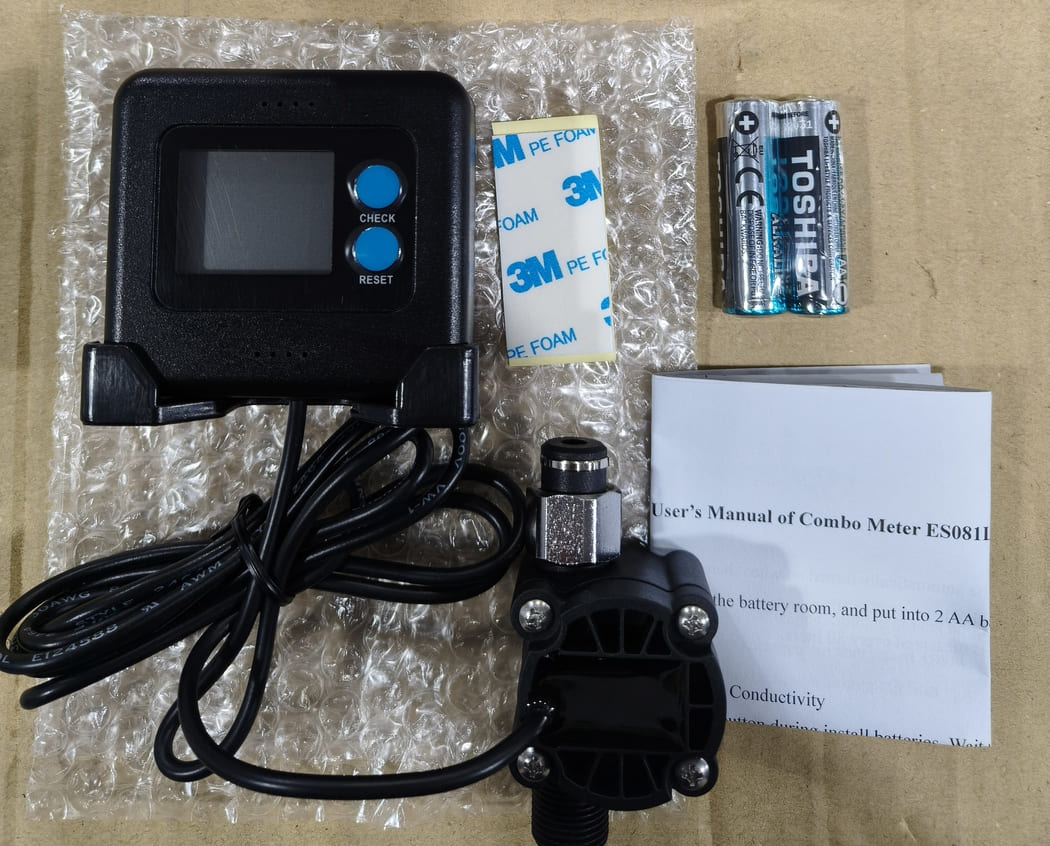

Batteries included

{Technical}

Capacity life monitor, from 100 to 99,900 liters
Elapse time monitor, from 30 to 720 days
TDS or Conductivity monitor, from 10 to 300 ppm(uS/cm)
End of capacity and elapse time alert
Battery operated, 2 AA alkaline batteries
Low battery power alert
Automatic data memorized when battery power is off

Connection : 1/4" Quick Connect
Flow Rate : 0.8 - 8.0 litre/min
Temperature : 0 - 40 C
Working pressure : 0.5 - 8 bar
Flow accuracy : +/ 5 %
TDS accuracy : +/ 5 %

TDS/conductivity probes are built directly inside the sensor body, so there is no need to install a separate external probe into the pipe.
