Digital Flow Rate & Flow Totaliser TDS/Conductivity Monitor

Product ID:

1009

Price:£73.29

Quantity:

Add Fitting?

Important note: This item is special-ordered upon purchase and will be added to next import - lead time approx. 3-4 weeks (or contact us for next import dates so we can add to it)

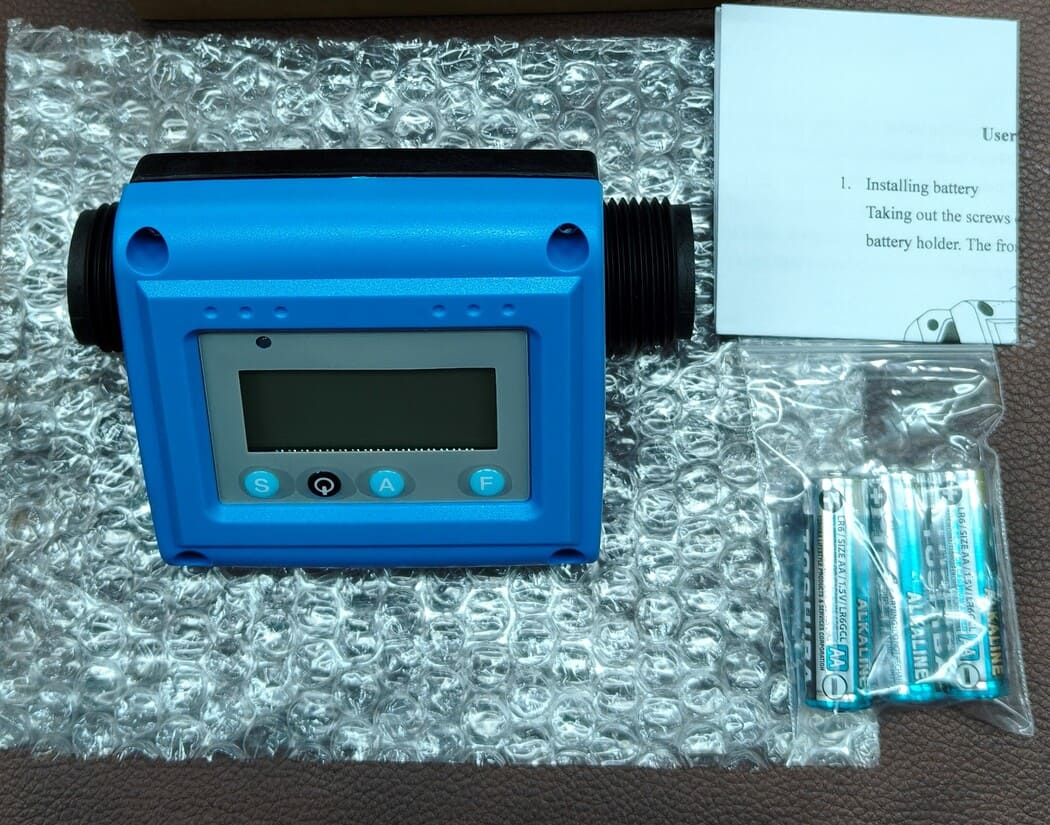

The Savant ES099A is a digital flow sensor and water quality monitor designed for residential and commercial reverse osmosis systems or water softeners etc. It automatically tracks real-time water flow, water volume total usage, TDS (Total Dissolved Solids) or conductivity. Automatically activates when water flows, tracking usage metrics and alerting you the moment your filters need servicing.

Core Functions:

TDS Monitoring: Performs manual or automatic checks on water conductivity and total dissolved solids.
Flow Measurement: Indicates real-time water flow rate and tallies total water usage.
Alerts: Triggers when set threshold of TDS/Conductivity is exceeded.
Alert System: Signals a low battery warning for its battery-powered setup
.
Manual TDS / conductivity test
Automatic TDS / conductivity monitor
Real time flow rate indicating
Flow totalization
1 BSP, or 3/4 BSP (with adapters)
Battery operated, low battery power alert

Automatically measures and updates every 10 litres (in AUTO mode). It also supports manual on-demand testing anytime by pressing the "A" button.

Real-time Flow Rate: Displays the instantaneous flow rate (ltr/min or gal/min) on the screen in real time.
Overall / Accumulated: Volume: Tracks and displays the total accumulated volume (up to 1,999,999 litres/gallons).

If the measured TDS/Conductivity exceeds the set limit:
The alarm will trigger with a continuous blinking red LED indicator.

TDS / Conductivity Measurement & Display:
To optimize battery life, measurement and update TDS/Conductivity value automatically every 10 litres while water flows, and display the result on the LCD screen.

Flow Monitoring: Real time flow, water usage totalization and functions as a filter capacity life monitor.

Key Applications:

Water Purification Systems
Hydroponics & Aquariums
Industrial Boilers & Cooling Towers
Commercial Window Cleaning
Beer Brewing & Distilling
Aquaculture & Fish Farming
Wastewater Treatment & Reclamation
Chemical Dosing Systems

Model: ES099A
Cable length - 1.5m
Batteries included

{Technical}

Connection : 1" BSP male
Flow Rate : 3 - 100 litre/min.
Temperature : 0 to 80 C
Working pressure : Max. 1 MPa
Burst pressure : 3 MPa
Flow accuracy : +/- 10%
TDS accuracy : +/ 5 %

Turbine : PA composite
Turbine shaft : #304 stainless steel
Turbine holder : POM
TDS/conductivity probe : #304 stainless steel

{Downloads}

Digital Flow Rate & Flow Totaliser TDS/Conductivity Monitor
