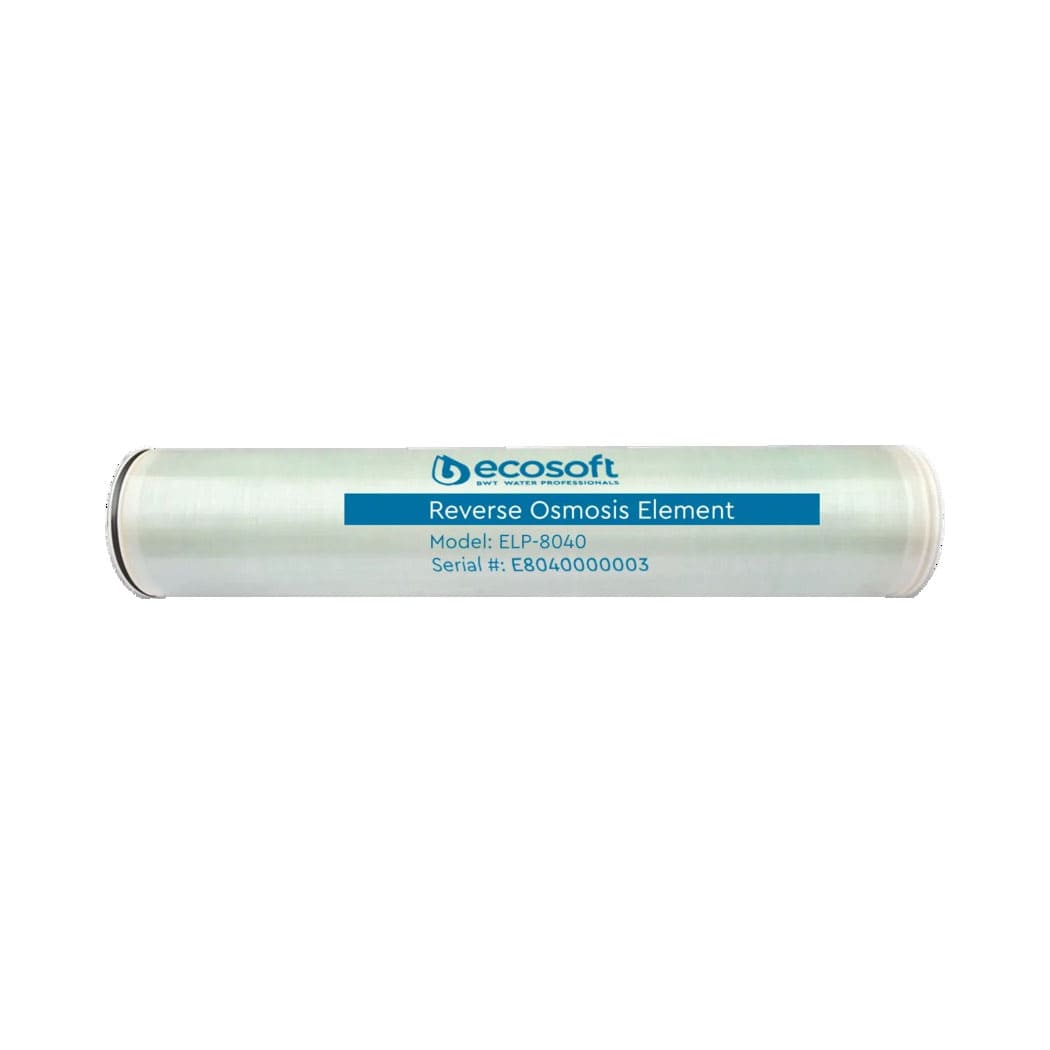

Ecosoft ELP 8040 8" Reverse Osmosis Membrane 11,000 GPD

Product ID:

931

Price:£769.00

Quantity:

The Ecosoft ELP-8040 membrane is designed for low-pressure operation with high rejection performance. Suitable for compact RO systems where efficiency and reliability are key.

ELP 8040-400 membranes are spiral wound membrane elements for reverse osmosis systems. ELP 8040-400 are intended for purification of brackish water in low pressure systems. Large active surface area together with high rejection rates allows to use these membranes in variable pressure and flow conditions without deterioration of permeate quality.

Features:

Low pressure membrane design
Up to 99% salt rejection
Standard 8" membrane housing compatible
Stable flux and energy efficiency
Ideal for light industrial RO systems

Permeate flow rate 42 m³/day
Recovery 15 %
Max. operating pressure 41 bar
Max. element pressure drop 1.0 bar
Operation pH range 2...11
Max. chlorine concentration 0.1 mg/L

{Technical}

Membrane type — spiral-wound element with polyamide thin-film composite

Active area: 37.0 m²
Operating pressure: 10.3 bar
Flow rate: 42.0* m³/day
Stabilized salt rejection: 99.2 %
* Permeate flow and salt (NaCl) rejection based on the following standard test conditions: 2 000 mg/L NaCl, 25 °C, 15% recovery. Flow rates for individual elements may vary but will be no more than 15% below the value shown.

Operating parameters
Maximum operating water temperature: 45 °C
Maximum operating pressure: 41 bar
Maximum element pressure drop: 1.0 bar
pH range, continuous operation: 2...11
pH range, short-term cleaning: 2...12
Maximum Feed Silt Density Index (SDI): 5
Free chlorine tolerance: < 0.1 mg/L

{Downloads}

{Delivery Info}
We endeavor to process and despatch your orders as quickly as possible and orders placed before 1pm are normally despatched the same day to arrive next working day (Highlands and Islands deliveries normally take 1-2 days longer).

Your order will be delivered via a 3rd party courier or delivery service on a next working day delivery service. We recommend that you ensure you have received your order prior to booking any installers.

All orders come with full tracking details and you can keep an eye on your delivery by using the tracking button at the top of the website.
