Ecosoft MO10000 Reverse Osmosis System (500 LPH)

Product ID:

704

Price:£2,978.00

Quantity:

The Ecosoft MO10000 is an ultra compact dual 4040 commercial 4" reverse osmosis water filter system designed for 500 LPH contunious use with the built in Grundfos® CM 1-10 pump. Full control with inbuilt OC5000 automatic or manual overide controller on/off, emergency shutdown, dry run sensors and over pressure module.

The MO10000 is a turnkey water treatment solution for various small to medium commercial businesses as well as being viable for domestic applications and is able to remove up to 99.8% of impurities from your water and it can produce up to 13,000 litres of purified water every day!

Applications Include:

Steam boilers
Heating and cooling circuits
Breweries and beverage production
Livestock and poultry farms
Glazing factories
Laundry and car wash

Key Features:

Ecosoft OC5000 controller
Reliable and stable performance
Flexible flow adjustment for various feed water
Ultra-compact dimension
Energy-efficient and global warranty thanks to Grundfos® pump
CE certified

OC5000 controller

The OC5000 controller is designed for automatic or manual control of reverse osmosis unit and provides:

automatic switching on and off of the equipment upon signal;
emergency shutdown of the equipment by signals from dry-running sensors, overpressure in the module;
shutdown of equipment on the external STOP signal.

Dimensions, H×W×D: 1481×289×364 mm
Filter weight 50 kg

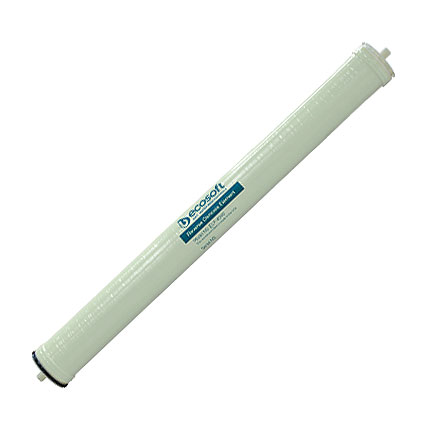

Note: Does not include 4040 membrane (The MO10000 uses Filmtec XLE-4040 / LCLE-4040 membranes or Ecosoft ELP-4040 membranes)

Requires 2 x Ecosoft 4040 Membrane

{Whats in the box!}

Grundfos® CM 1-10 pump
Dual 300 psi membrane vessel
2.5 × 10" sediment prefilter
Electrical panel with Ecosoft controller
Piping, instrumentation
Steel frame
Wooden crate
* conductivity sensor is not included to the system's components.

{Technical}

Connections:
influent water — ½"
permeate — ½"
concentrate — ½"

Specifications

Permeate capacity* — 500 L/h
Permeate recovery** — 75%
Maximum TDS — 3000 mg/L
Influent flow demand — 650…800 L/h (service)
Operation pressure — 8…12 bar
Maximum pressure — 14 bar
Electrical requirements — 230 V, 50 Hz (1 ph)
Electrical power — 0.7 kW
Prefilter rating — 5 µm
* depends on feed water TDS, temperature, and permeate recovery

** for low scaling/fouling water

Feed water requirements
Influent water temperature — +5...+40 °?
Residual chlorine, max — 0.1 mg/L
Hardness — up to 3 meq/L (150 mg/L CaCO3)
Iron — up to 0.1 mg/L
Manganese — up to 0.05 mg/L
Silicate — up to 20 mg/L
Chemical oxygen demand, max — 4.0 mg ?2/L
Hydrogen sulfide - none
The limitations may be exceeded if using antiscalant, oxygen scavenger, or other RO chemical pretreatment.
