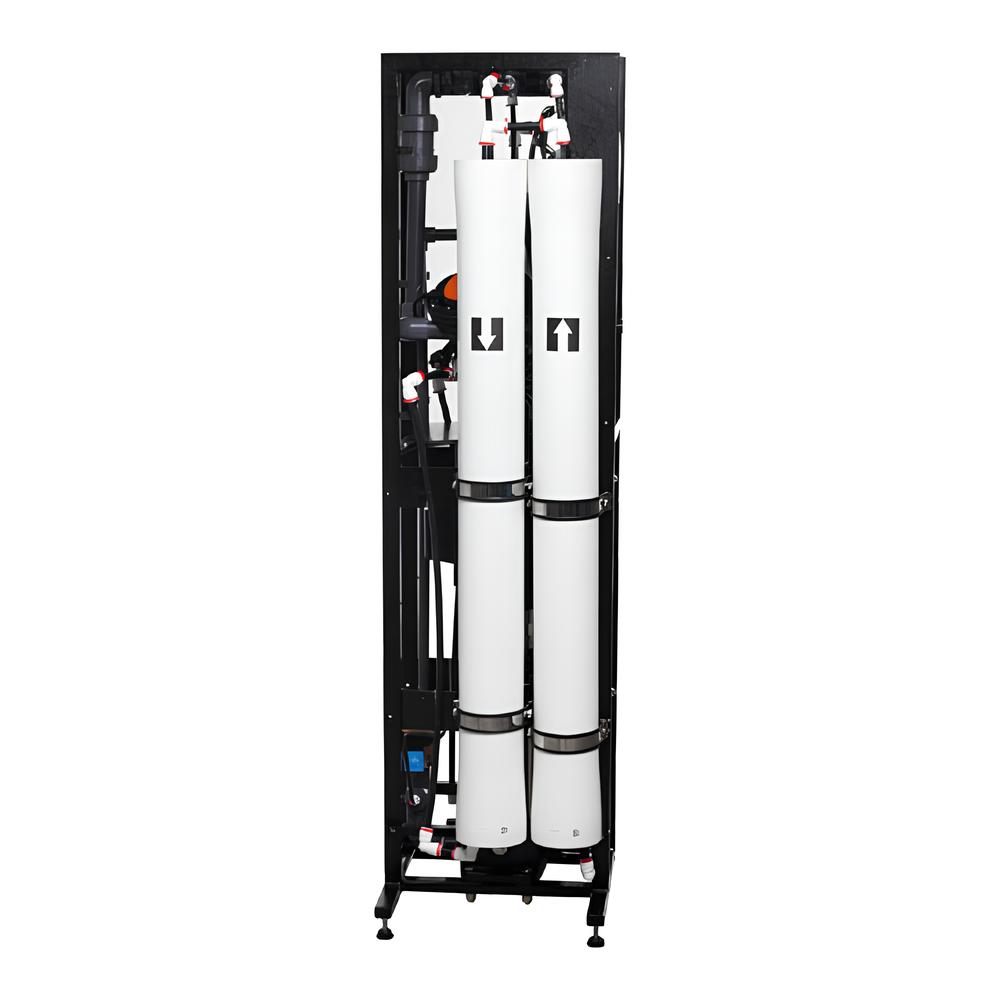

Ecosoft MO20000 Reverse Osmosis System (830 LPH)

Product ID:

882

Price:£5,701.20

Quantity:

The Ecosoft MO20000 is an ultra compact 4 x 4040 commercial 4" reverse osmosis water filter system designed for 830 LPH contunious use with the built in Grundfos® CR 3-15 pump. Full control with inbuilt OC5000 controller with LCD interface. automatic or manual overide controller on/off, emergency shutdown, dry run sensors and over pressure module.

The MO20000 is a turnkey water treatment solution for various small to medium commercial businesses as well as being viable for domestic applications and is able to remove up to 99.8% of impurities from your water and it can produce up to 20,000 litres of purified water every day!

Applications Include:

Steam boilers
Heating and cooling circuits
Breweries and beverage production
Livestock and poultry farms
Glazing factories
Laundry and car wash

Key Features:

Ecosoft OC5000 controller
Reliable and stable performance
Flexible flow adjustment for various feed water
Ultra-compact dimension
Energy-efficient and global warranty thanks to Grundfos® pump
CE certified

OC5000 controller

The OC5000 controller is designed for automatic or manual control of reverse osmosis unit and provides:

automatic switching on and off of the equipment upon signal;
emergency shutdown of the equipment by signals from dry-running sensors, overpressure in the module;
shutdown of equipment on the external STOP signal.

Dimensions, H×W×D: 1482×495×395 mm
Filter weight 90 kg

Note: Does not include 4040 membrane (The MO20000 uses Filmtec XLE-4040 / LCLE-4040 membranes or Ecosoft ELP-4040 membranes)

Requires 4 x Ecosoft 4040 Membrane

{Whats in the box!}

Grundfos® CR 3-15 pump
300 psi membrane vessel
Electrical panel with Ecosoft controller
Piping, instrumentation
Powder coat steel frame
Wooden crate
* conductivity sensor is not included to the system's components.

{Technical}

Connections:
influent water: 3/4"
permeate: 1"
concentrate: ½"

Specifications

Permeate capacity*: 1000-1200 L/h
Permeate recovery**: 75%
Maximum TDS: 3000 mg/L
Influent flow demand: 1300…1500 L/h (service)
Operation pressure: 8…12 bar
Maximum pressure: 14 bar
Electrical requirements: 230 V, 50 Hz (1 ph)
Electrical power: 1.4 kW
Prefilter rating: 5 µm
* depends on feed water TDS, temperature, and permeate recovery

** for low scaling/fouling water

Influent water temperature: +5...+40 °?
Residual chlorine, max: 0.1 mg/L
Hardness: up to 3 meq/L (150 mg/L CaCO3)
Iron: up to 0.1 mg/L
Manganese: up to 0.05 mg/L
Silicate: up to 20 mg/L
Chemical oxygen demand, max: 4.0 mg ?2/L
Hydrogen sulfide: none
