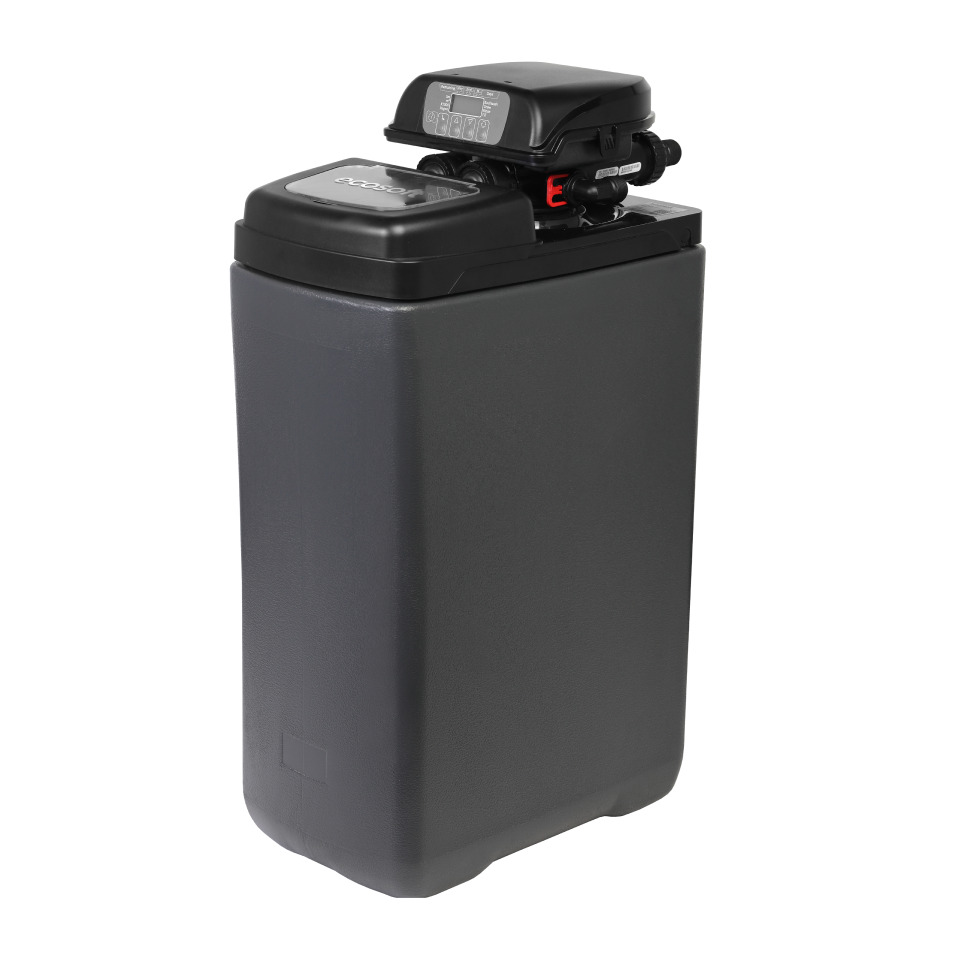

Ecosoft Softener is a metered, cabinet style residential water softener. The system utilizes a 20 Litre resin tank for 5000 Litres / day capacity (based on 250 ppm hardness) and is designed to be used at a point of entry to flats/houses or before industrial grade equipment such as dishwashers, washing machines, boilers, etc.
Delivery notice: Delivered on a pallet so please allow up to three business days for the delivery

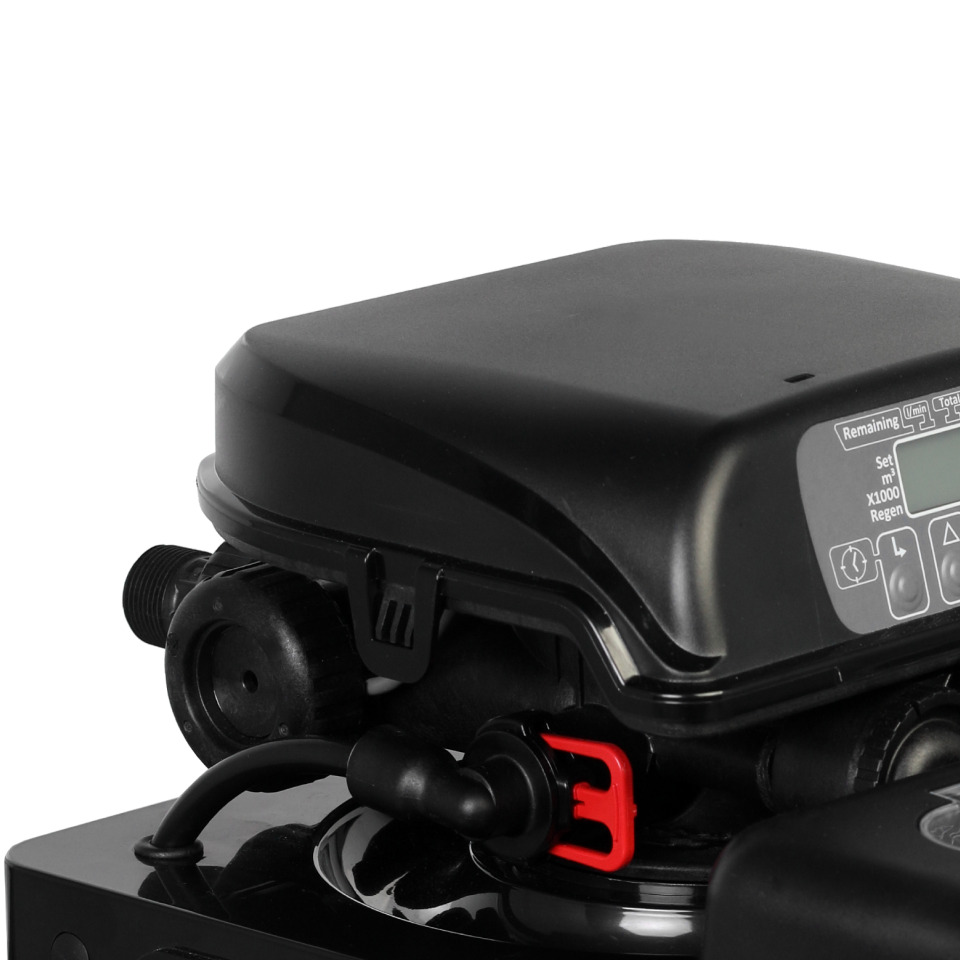

The softener comes with Clack 1” Metered Softener Valve.
The system works in both metered and time based modes for minimal salt consumption, waste generation, and downtime. The system also has smart capabilities, all operations except loading the system with salt are fully automatic. The proprietary software and digital screen allows for easy user interface with the system while maintaining very high water softening efficiency and system uptime.
Ecosoft Water Softener produces the softest water possible at the highest efficiency. The elegantly designed system is one of the most technologically advanced water softening systems.
Fully automatic system, no manual intervention required to operate
Smart capabilities, decides when to regenerate for maximum efficiency
1'' Metered Clack Valve
Benefits of using Water Softener
Hair and skin will feel smooth and silky after your bath or shower
Eliminate issues with hard scale sticking to your taps, shower screen and kitchen
Cleaning will become much easier
Increase the lifetime of appliances
Stylish and ergonomic, designed specifically for modern living
Luxurious, giving silky smooth water for the whole house
Reducing your needs for detergents and other cleaning products
{Technical}
Components:
Pre-adjusted US-made Clack® DV with mixing valve
Cabinet enclosure
Pressure tank
Brine well with safety float valve
Ion-exchange resin DOWEX™ HCR-S/S
Technical specifications
Operating Flow rate — 1.8 m³/h (30 LPM)
Quantity of media — 20 L
Volume capacity* — 5 m³ (5000L) for hardness at 5 meq/L (250 mg/L CaCO3)
Usage of salt per regeneration** — 1.6-2 kg
Usage of water per regeneration — 0.12 m³ (120L)
Duration of regeneration — 80–110 minutes
Pressure drop in service mode — 0.5 bar
Inlet pressure — 2–6 bar
Electrical requirements — 230 V, 50 Hz
Power consumption — 30 W

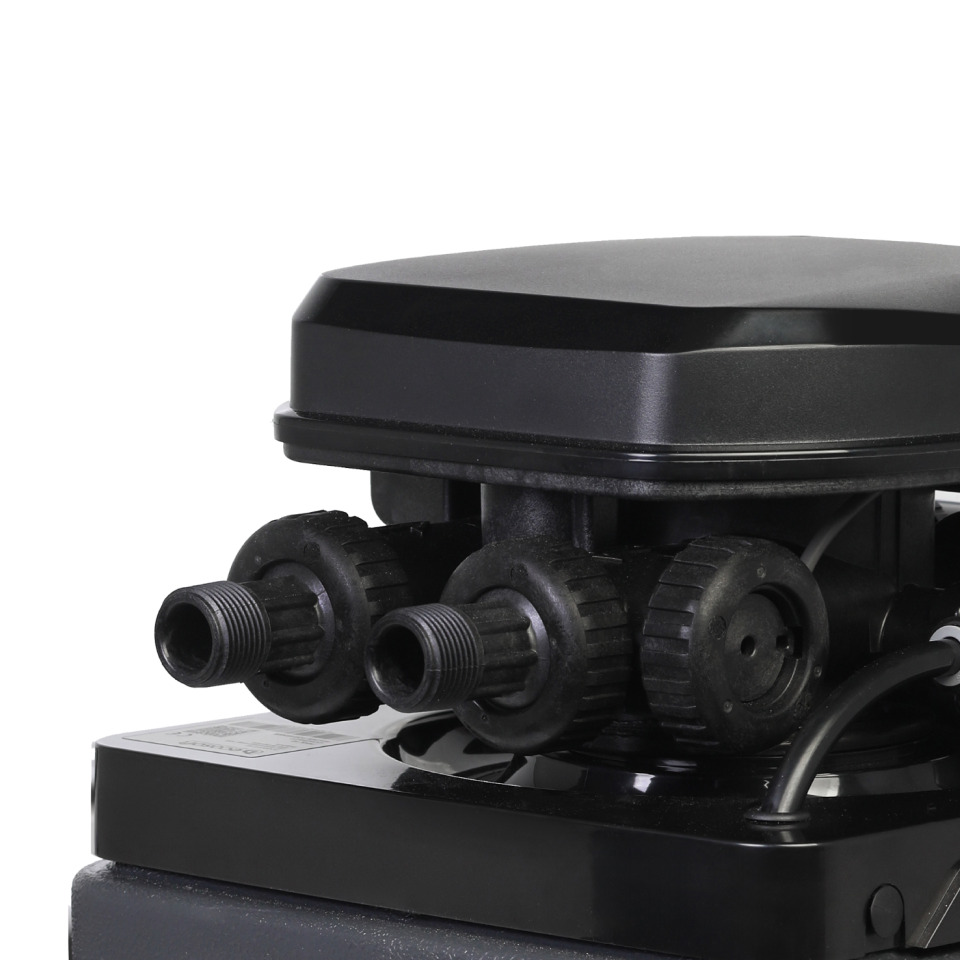

Inlet/outlet pipe connections — 3/4’’
Influent water parameters
Hardness — 15 meq/L (750 mg/L CaCO3)
Iron — 0.2 mg/L
Manganese — 0.05 mg/L
Required level of purification of sediment particles — 100 µm
Initial water temperature — +4…+30 °?
Operational Specifications @ 250 PPM hardness & 5000Litres / Day consumption:
• Regeneration cycle once every 5-6 days (based on a 4 people household using 160 litres/person in an area where the water is 250 ppm hard)
