Osmio Fusion 2.0 Countertop Water Filter & Kettle

Osmio Fusion 2.0 Reverse Osmosis System

Smart and highly efficient reverse osmosis water filter and kettle that will produce high quality water with counter-top installation and super easy user maintenance.

The unit is installed on the counter top and requires plumbing to source water and drain.

This is the installed (plumbed in) version of the Osmio Zero. This system is ideal for larger families (5+) and offices where an Osmio zero would not cope. If you have less than 5 occupants we would recommend the Osmio Zero instead!

Benefits

High Quality Counter Top Water Filter and Dispenser! Best Kettle Ever!

80% more energy efficient than a regular kettle!

Counter top installation, Simple plumbing required! (see manual below)

Thousands of times more pure than traditional gravity filters or jug filters.

Replaces your kettle by also producing reverse osmosis quality water, ambient, warm, hot or boiling at your fingertips!

Filters cold water and has a boiler for dispensing instant nearly boiling water

Very compact and can be plumbed in anywhere with a cold supply and waste.

Uses a ceramic heating element instead of metallic so water can be made pure (low TDS) without heavy metal extraction!

Uses flow monitoring to detect filter life and alarm, plus fail safe built in to never dispense bad water.

3 Year Warranty!



Filter Stages;

Stage 1 - Quick-Change activated carbon pre filter for reduction of chlorine and organic impurities

Stage 2 - Quick-Change Membrane 50GPD: reduction of vast array of pollutants. Removing up to 99% of contaminants present in water including viruses, bacteria, heavy metals, fluoride, hormones, silica and salts.

Stage 3 - Quick-Change Hygiene Post Filter for antibacterial calcium and magnesium bioceramics, adding a small 10-20 ppm of minerals.to improve the taste.

The first thing to note is that the system is amazingly easy to use and maintain and a great deal of time and investment has gone iinto the product.

Incredibly easy to use and assemble. Simply take it out the box, plug it in and connect to cold feed water and drain. Turn the dial to adjust the temperature and press to dispense and stop, that's it! Within minutes you will have reverse osmosis quality water, ambient, warm, hot or boiling at your fingertips!

It makes the perfect choice anyone who wants the convenience of a top of range purification system with counter-top installation for larger families of over 6 people.

It is recommended to have at least a spare carbon filter and membrane on hand with the unit at all times.

The system is designed with ease and practicality in mind. The unit has a very simple user interface. Water comes with the turn of a dial and there is no complicated user manual needed. The system is installed on the counter needs to be plugged into a power supply. Tubing to the system feeds from the cold water pipe and access to drain is also required. A water source which gives you easy access to fresh and healthy RO pure water at any time.

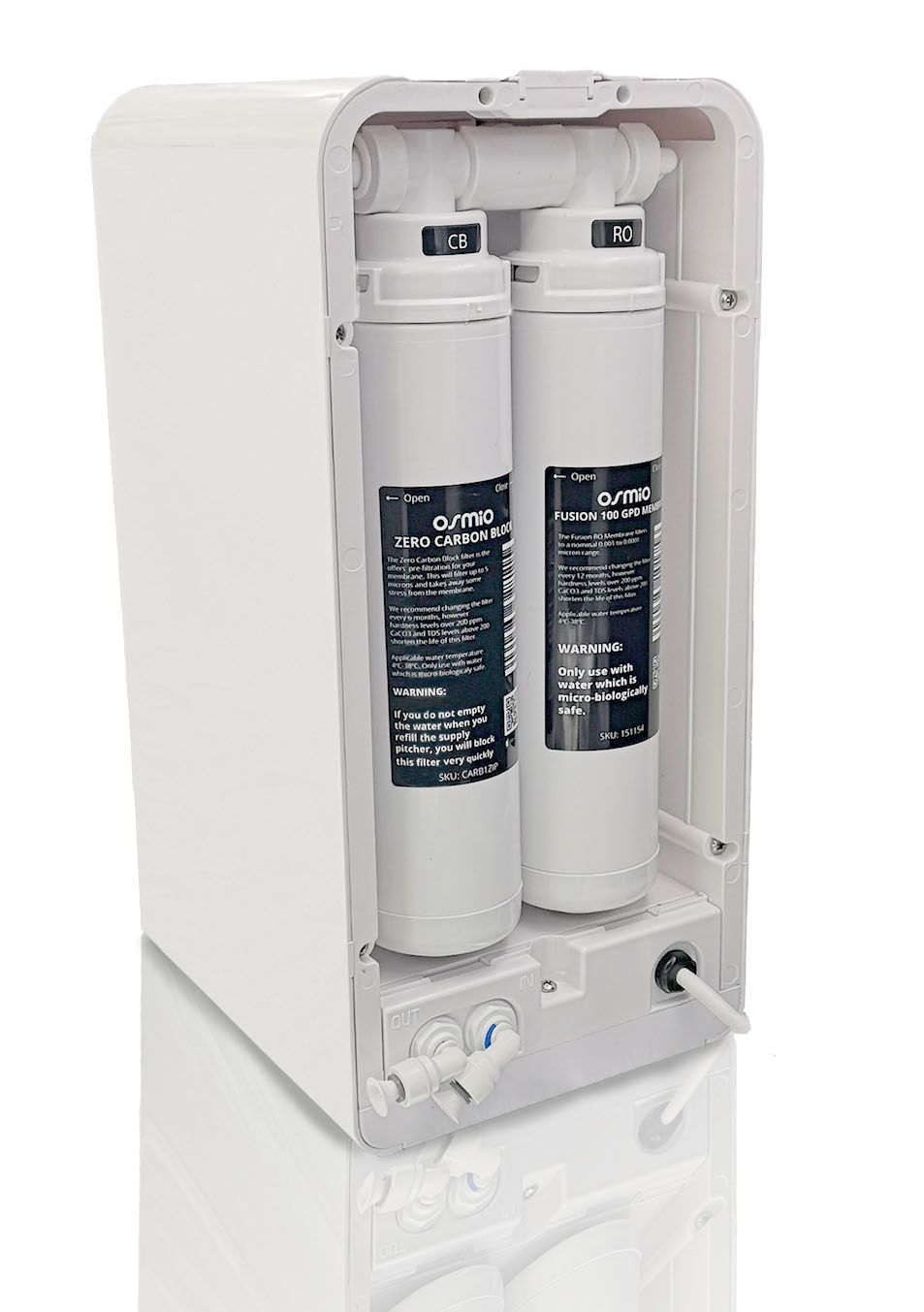

Changing the filters is really quick and easy. They come off and go back on with a simple twist function.

The colour coded LED instantly shows when the filtration has completed. The intelligent, automatic, power-saving motor design, gives instant supply of filtered water, and automatically shuts off when filtration is complete.

An ideal investment for larger households!

The system has an automatic shutdown mode, after 1h the device switches off automatically, so you save power!

Water Temperatures

The system can provide the following osmotic level water with organic calcium and magnesium active ceramic:
Normal temperature water (approx. 25 ° C), ideal for direct drinking
Warm water (40 ° C - 50 ° C) ideal for baby food
Hot water (80 ° C - 88 ° C) ideal for coffee
Nearly boiling water (90 ° C - 95° C) ideal for tea

PLEASE NOTE - the system reaches 100% but then travels through the route to the dispenser and loses some degrees. By using a thermometer at the very top where the water comes out, you will measure around 93-95°C. A great tip for hotter dispensing is to first select 100°C Setting, and let the water get hot and make your mug hot. Then press stop and empty that out, then go again with a new 100°C press and the results are much better.

Filter Stages

1 - Quick-Change activated carbon filter: removes chlorine and organic impurities
2 - Quick-Change Membrane 50GPD: removes all pollutants and flavours to almost 100%
3 - Quick-Change Insertion Filters: Hygiene After-filter antibacterial calcium and magnesium bioceramics, adding a small 10-20 ppm of minerals.
{Technical}
Weight & Dimensions

Height: 38 cm
Width: 18 cm
Depth: 23 cm (approx 32 cm including drip tray)
5kg weight
Incoming 1/4" tubing length: 4m
To drain 1/4" tubing length: 4m

Maximum Bottle Height with Tray in position: 22cm
Maximum Bottle Height without Tray in position: 24cm

Capacity

Up to 190 litres daily (at 20 ° C water temperature)
Flow Rate: 7.8 Litres Per Hour (at 20 ° C water temperature)
Capacity Osmosis water tank: 1.5 litres approximately - 10-15 minutes to refill
Hot water capacity: 30 l / h (= 90 )

Feed water requirements

Temperature 4 - 40 oC
pH 6.5 - 8.5
Turbidity < 5 NTU
TDS < 500 PPM
Hardness < 500 PPM CaCO3 (50 oF) (28 odH)
Chloride < 250 PPM
Free Chlorine < 0.7 PPM
Iron < 0.1 PPM
Manganese < 0.1 PPM
Silica < 0.1 PPM
Chemical Oxygen Demand < 5 PPM O2
Total Bacteria Count < 50 CFU / mL
E. Coli < 3 CFU

Feed Water Pressure 2 Bar Min. - 6 Bar Max. Please use a pressure reducer if feed water pressure is above 6 bar.

Power

Power connection required: DC 220-240V, 50Hz
Power Rating: 2200W - 2600W
Nominal heating power 2180W - 2580W
The osmosis system consumes in standby only under 0.5 watts thanks to the ERP2 power supply
With booster pump DC 24V and water pump
Including flush valve
Integrated automatic shut-off: As soon as the storage tank is filled, the water production stops.
Normal wear and tear. We suggest the system should be replaced after 5 years.

Power consumption

Sleeping mode power consumption is 1kw/24h

Filter changes

Filter changes recommended by the manufacturer: every 6 months for pre and post filters
Quick-Change filter: filter changes are very easy!
