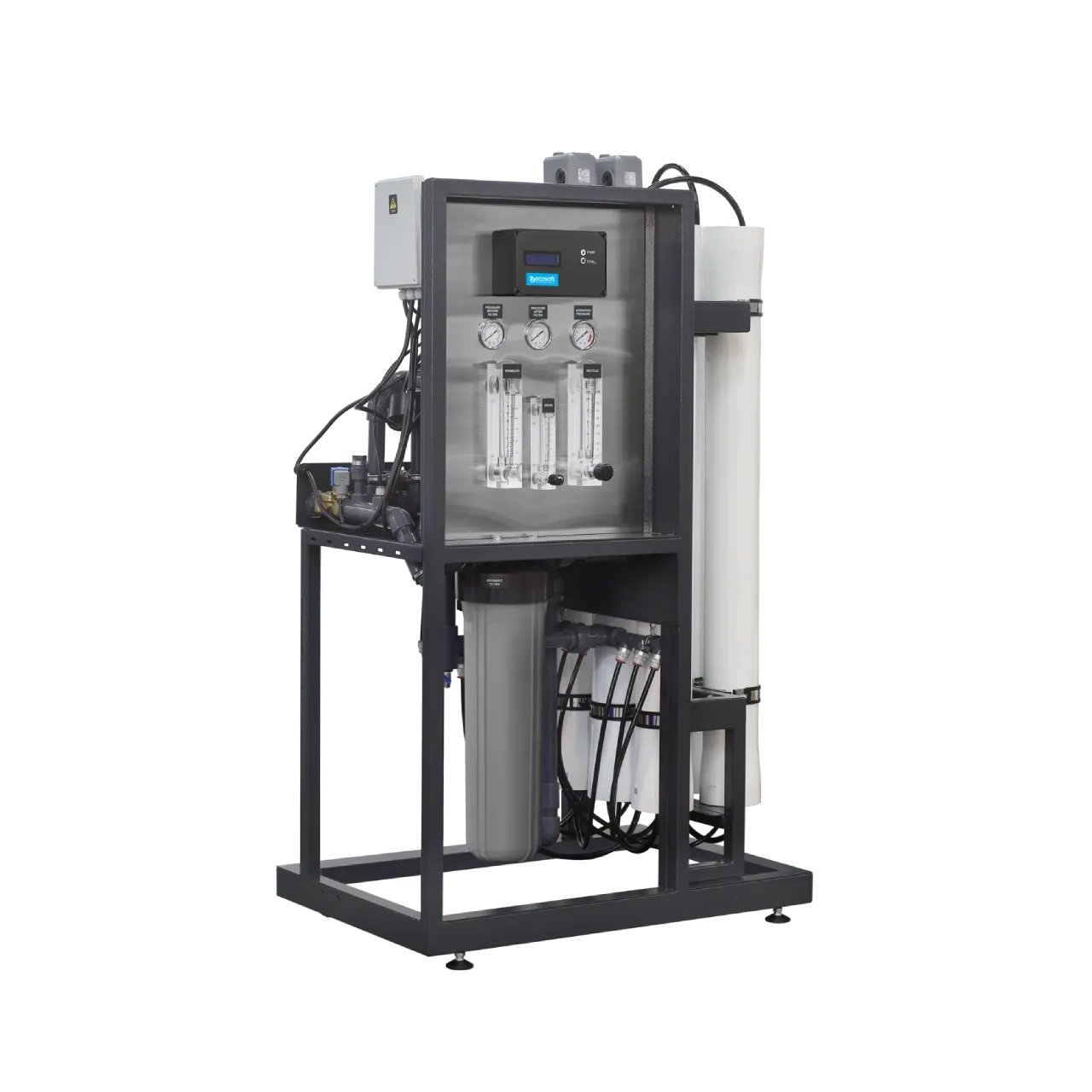

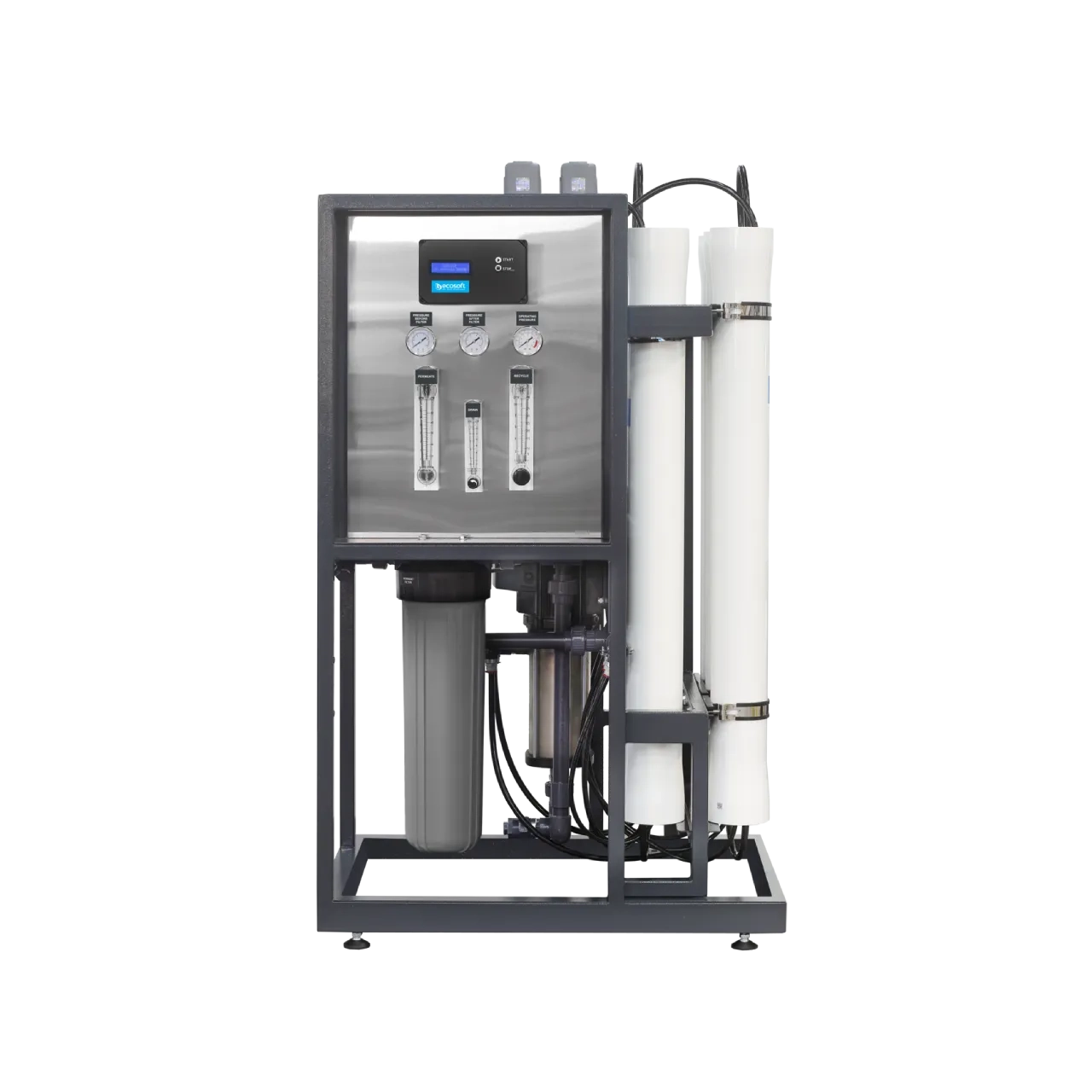

Ecosoft MO36000 Pro Reverse Osmosis System (1500 LPH)

Name: Ecosoft MO36000 Pro Reverse Osmosis System (1500 LPH)
Brand: Reverse Osmosis World
SKU: MO36000TP5
Price: 8574.0 GBP
Availability: InStock

Product ID:

923

Price:£8,574.00

Quantity:

MO36000 Pro is the most productive model in the Professional series. The system purifies up to 36,000 liters of water per day. One of its key advantages is the ability to operate from a standard 230 V network. Pre-designed and convenient options for permeate flushing and blending assembly allow it to handle any water treatment task, even with complex water. The system design and reliable components enable continuous 24/7 operation.

Its open-frame design ensures quick maintenance access, while the OC5000 controller allows full customization to meet specific applications and conditions. Permeate flushing extends the service life of membrane elements by up to 30% and significantly reduces the load on pre-filters.

The blending assembly enables mixing from any point in the water purification system or even from another water source. A well-thought-out design with a power reserve makes this model an optimal solution for water purification in hotels, greenhouses, and livestock complexes. The MO36000TP5 is also a reliable choice for medium-sized businesses such as breweries, household chemicals, cosmetics, and car care production.

Applications Include:

Steam boilers
Heating and cooling circuits
Breweries and beverage production
Livestock and poultry farms
Glazing factories
Laundry and car wash

Key Features:

Flow capacity: 1500 L/h
Reliable and stable performance
Flexible flow adjustment for various feed water
Reliable Ecosoft OC5000 controller
Energy-efficient and quiet Grundfos® pump

OC5000 controller

The OC5000 controller is designed for automatic or manual control of reverse osmosis unit and provides:

automatic switching on and off of the equipment upon signal;
emergency shutdown of the equipment by signals from dry-running sensors, overpressure in the module;
shutdown of equipment on the external STOP signal.

Dimensions: H×W×D: 1490 × 870 × 580mm
Filter weight: 130kg

Note: Does not include 4040 membrane (The MO36000 uses Filmtec XLE-4040 / LCLE-4040 membranes or Ecosoft ELP-4040 membranes)

Requires 6 x 4040 Membrane

{Whats in the box!}

Pump: Grundfos® CM 3-14, high-energy efficiency (IE4, A+), low noise and vibration, AISI 304 – 1 pcs
Membrane vessel: 300 psi – 6 pcs
Electrical panel and controller: Ecosoft OC5000
Conductivity cell (permeate): yes
Sediment prefilter: BB20 – 1 pcs
Sediment filter: PP melt-blown 4.5" × 20", 5 µm – 1 pcs
Frame: Steel, powder-coated – 1 pcs
Inlet solenoid valve: Danfoss – 1 pcs
Forward flush solenoid valve: Danfoss – 1 pcs
Float switch: 1 pcs
Pressure switch after sediment filter: adjustable
Pressure switch on permeate line: adjustable
Permeate rotameter: 5–35 LPM, non-adjustable
Concentrate rotameter: 5–35 LPM, adjustable
Permeate recycle: 10–50 LPM, adjustable
Pressure gauge inlet before sediment filter: 10 bar
Pressure gauge after sediment filter: 10 bar
Operating pressure gauge: 16 bar
Connection feed water: G 1
Connection permeate: G 1
Connection concentrate: G 1
Connection ports for dosing pump: G 1/2
Connection ports for permeate flush kit: G 1
Connection ports for raw water blending kit: G 3/8

{Technical}

Rated capacity: 1500 L/h
Rated capacity: 36000 L/d
Recovery: up to 75 %
Inlet water TDS: 3000 ppm
Membranes (pcs/type): 6/40×40
Inlet water pressure: 2…4 bar
Operating pressure: 8…12 bar
Maximum pressure: 14 bar
Service feed flow: 2000–2500 L/h
Forward flush feed flow: 4200 L/h
Water consumption for forward flush: 70 L
Inlet water temperature: 5…30 °C
Online access: no
Controller menu languages: EN
Power supply: 1 × 220–230 V
Frequency: 50 Hz
Rated power: 1.9 kW
Permeate flow*: 27 LPM
Concentrate flow*: 9 LPM
Recycle flow*: 24 LPM
Operating pressure*: 10.0 bar

{Downloads}

{Delivery}

Experience swift delivery of your system with our efficient service, typically arriving within 2 to 5 working days. We will coordinate with you to select a suitable delivery date, ensuring a seamless process tailored to the size of your order. Enjoy peace of mind knowing that your purchase will be handled with care and delivered promptly.
